2D model¶
The example uses a 2D model for the example of the previous section Micro Lens. The geometry is now invariant in the -direction (here we use the 2D convention, so that the computational domain lies in the
-plane:

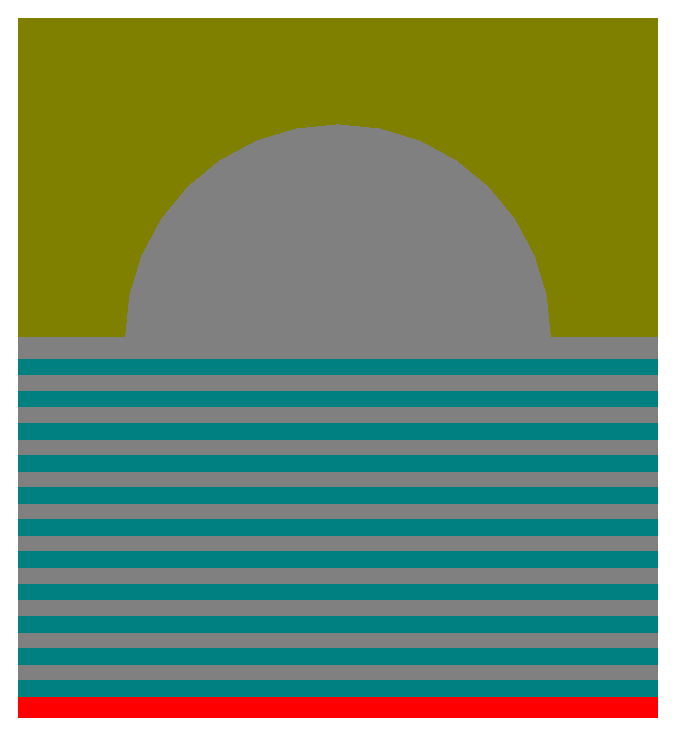

Single Photon Pillar Emitter (2D model)¶
The quantum dot is place in the center of lens.

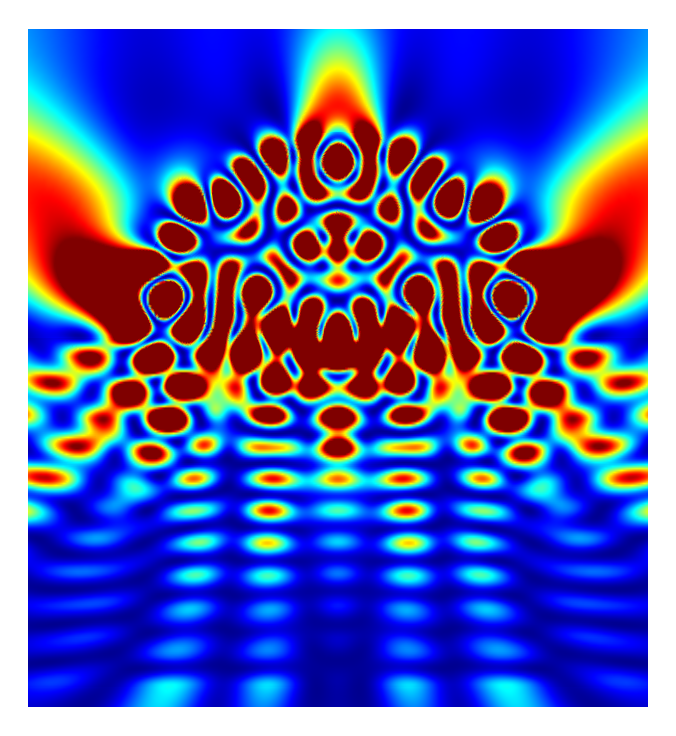

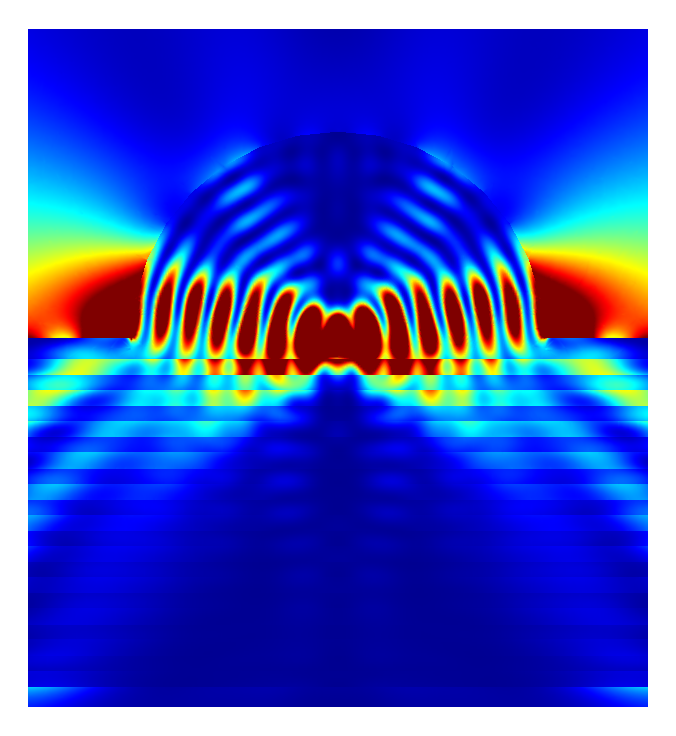

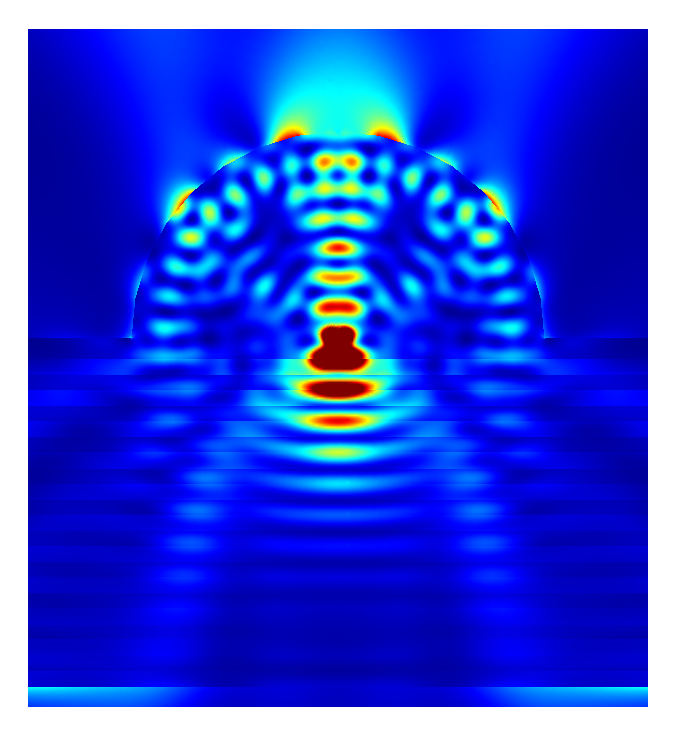

The following figures show the near field intensities of the three dipoles for a circular micro lens:
![]() |
![]() |
![]() |
